Facile Semi-automatic Wrapping Machine

FACILE

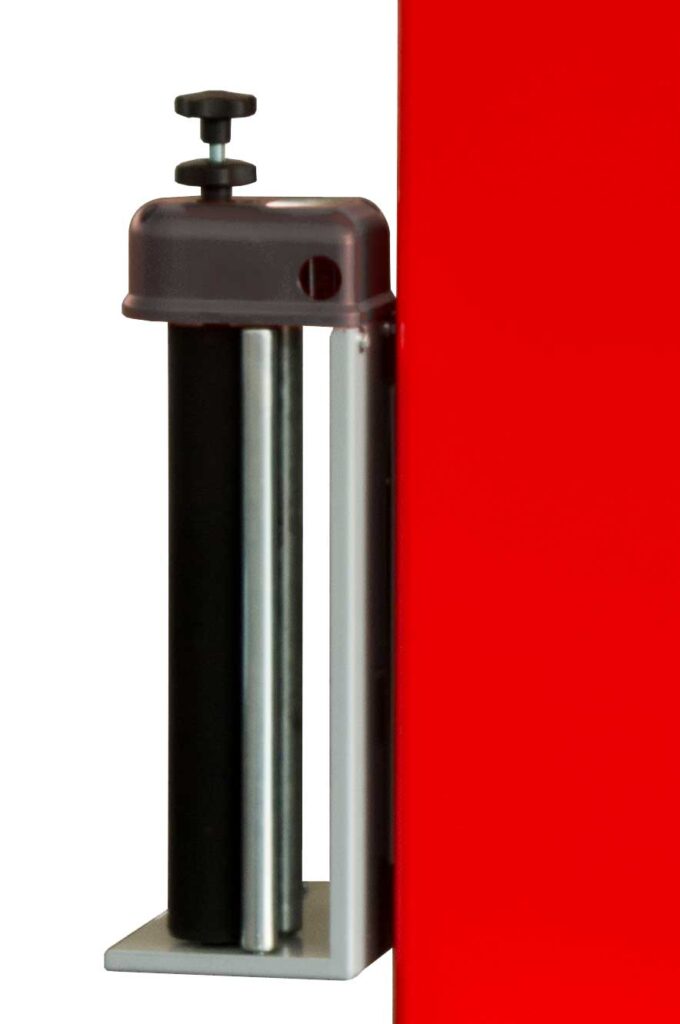

Model ZERO.1 with MECHANICAL BRAKE for film tensioning

avvolgitrice freno meccanico

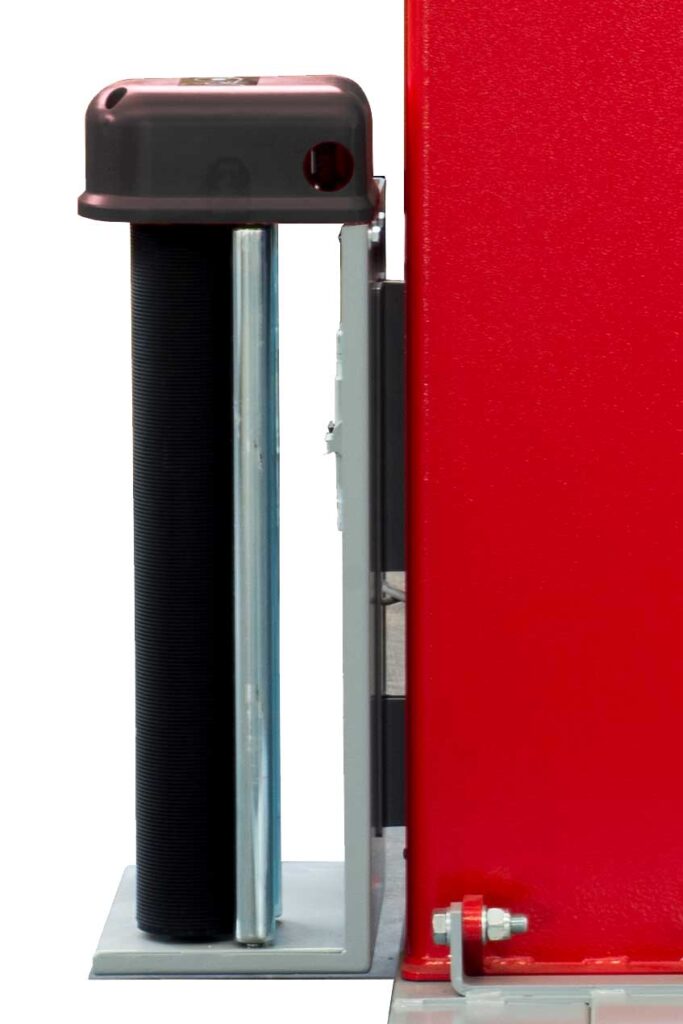

Model ZERO.3 with ELECTROMAGNETIC BRAKE for film tensioning

avvolgitrice freno elettromagnetico

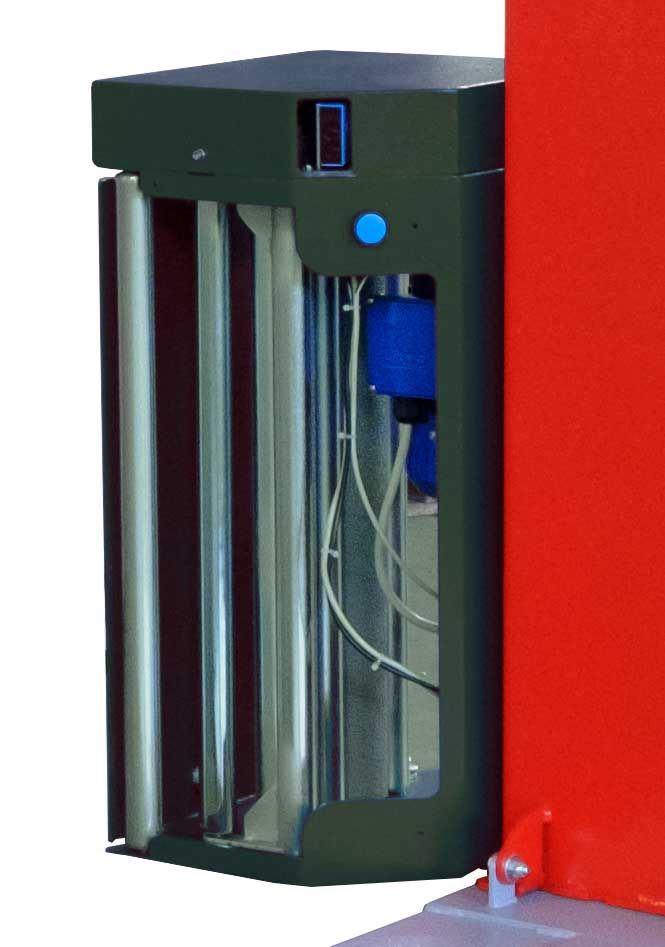

Model ZERO.5 with MOTORISED PRE-STRETCH for film tensioning, with pre-stretch ratios on request: 100% – 150% – 200%

avvolgitrice prestiro motorizzato
0
Minimum table diameter
0
Minimum capacity kg

Wrapping height detected by photocell

Table and film carrier speed regulation

Collapsible column

ON REQUEST

Table diameter 1650mm with 2000kg capacity

Wrapping height up to 2600mm

Automatic film cutting device (Zero.5)

WATCH THE VIDEOS

WATCH THE PICTURES

packaging made in italy

DESIGNED AND PRODUCED BY EFFE3TI

“EASY, but not trivial”. Equipped with a fork-like base and collapsible column, this wrapping machine offers reliability, ease of use, portability at a cost that you would never know.

SPECIFICATIONS

  • Rotating table with forkable base diameter 1500 mm capacity 1200 kg
  • Wrapping height detected by photocell
  • Speed adjustment of the rotary table from 6 to 12 rpm with gradual start / stop of rotation
  • Speed adjustment of the film carrier from 3 to 5 m / min.
  • Separate top and bottom reinforcement wraps
  • Column hinged for transport

WRAPPING CYCLES

  • Double cycle
  • Double cycle with possibility of manual stop for simple cycle execution with reset or upper sheet positioning and automatic cycle restart
  • Manually operated reinforcement wraps
