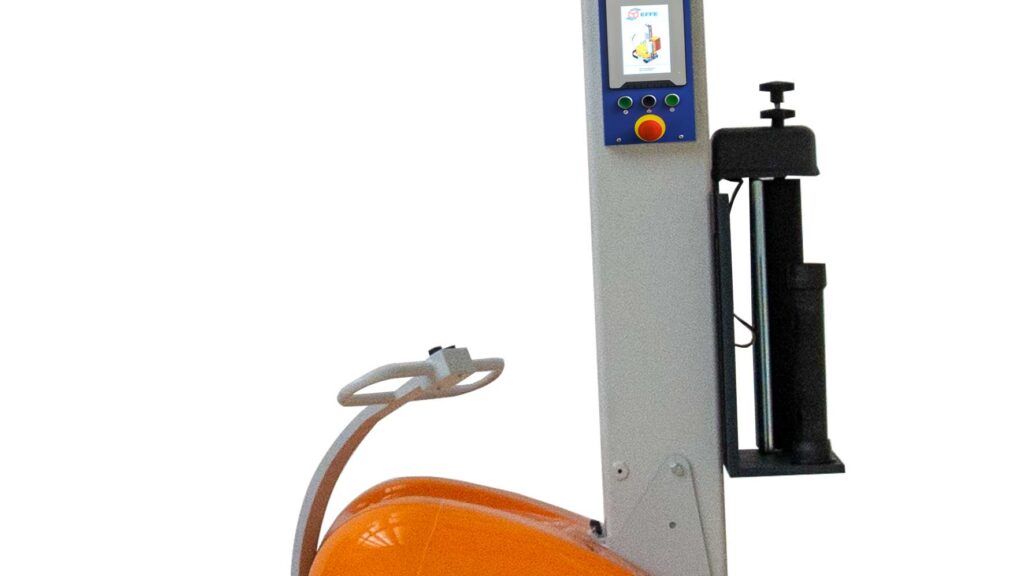

Oscar Touch V.1 Pallet Wrapper Robot

Model V.1

Film carrier with MECHANICAL BRAKE

WRAPPING HEIGHT detected by photocell

Adjustable film carrier SPEED from 3 to 5 m/min.

robot fasciapallet
robot fasciapallet touch screen

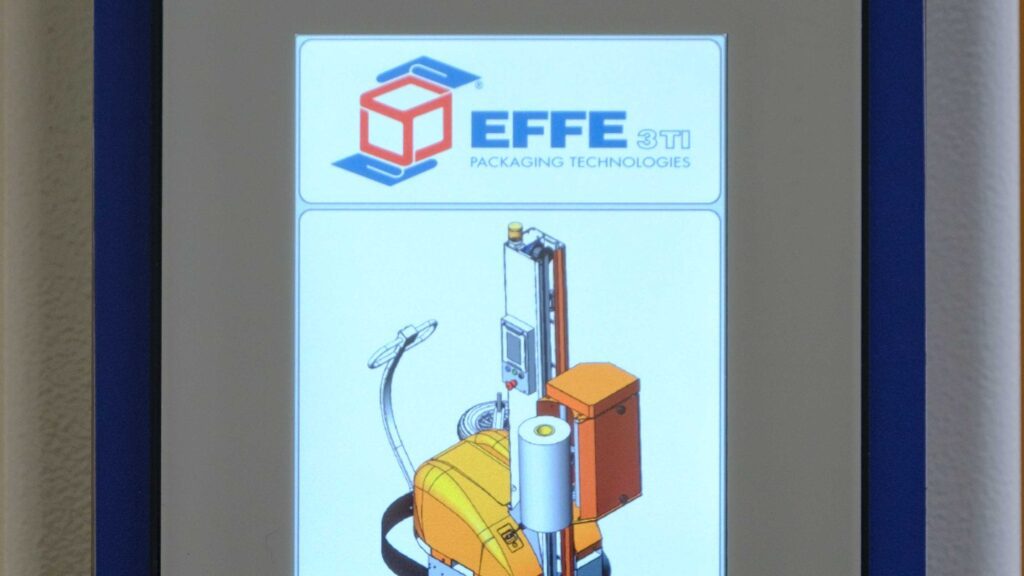

TOUCH-SCREEN control panel

SPEED adjustment up to 1,1 m/s with gradual start and stop

ADVANCED working cycle  PROGRAMMING

PATENTED driving and traction system

Manual movement with push buttons on directional rudder

Hinged column for transport

robot fasciapallet
0
Pallets with one charge
0
Hours for a complete charge
0
Maximum height (optional)

1000mm footprint from pallet

Adjustable speed

Flashing light and sound signal

ON REQUEST

PHOTOCELL FOR BLACK PRODUCTS

3100mm COLUMN

WATCH THE PICTURES

WATCH THE VIDEOS

packaging made in italy

DESIGNED AND PRODUCED EFFE3TI

If the product isn’t loaded onto a wrapping machine, it’s the wrapping machine that moves aroung the product. Here’s OSCAR is designed for versatility and mobility needs, where immediate “on site” wrapping is needed.

It can be easily moved thanks to handlebar equipped with buttons for handling or moved with forklift.



SPECIFICATIONS

  • Dimensions WxLxH: 690x1060x2100 mm
  • 1000mm footprint from pallet during wrapping
  • Minimum package: 600mm x 600mm
  • Working range per charge: moore than 250 pallets (W800x1200xH1500)
  • Complete charging cycle: 8 hours (on-board charger)
  • Flashing motion and sound signal at start and end of cycle
  • Column height H: 2100mm
  • Weight 250Kg
  • Wrapping height detected by photocell
  • Variable speed up to 1,33 m/s with gradual start/stop
  • Variable film carrier speed from 3 to 5 m/min.
  • Top and bottom reinforcement wrapping
  • Reinforcement wrapping with “step” cycle
  • Up and down speed adjustment of the film carrier
  • Separate film tension adjustment for each cycle position
  • Intermediate reinforcement with altitude and speed setting
  • Manual movement
  • Hinged column for transport
  • Side and back forklift housing
  • Model V.1 — Film carrier with mechanical brake for film tensioning
  • End film and film breaking report
  • Battery status report
  • Touch-screen control panel
