Rotax S3300XL Semi-automatic Wrapping Machine

Wrapping machine for large pallets

Film tensioning with 1- or 2-motors PRE-STRETCH SYSTEM

Film carrier SPEED regulation

avvolgitrice a braccio fasciapallet

Perfect for your bigger products

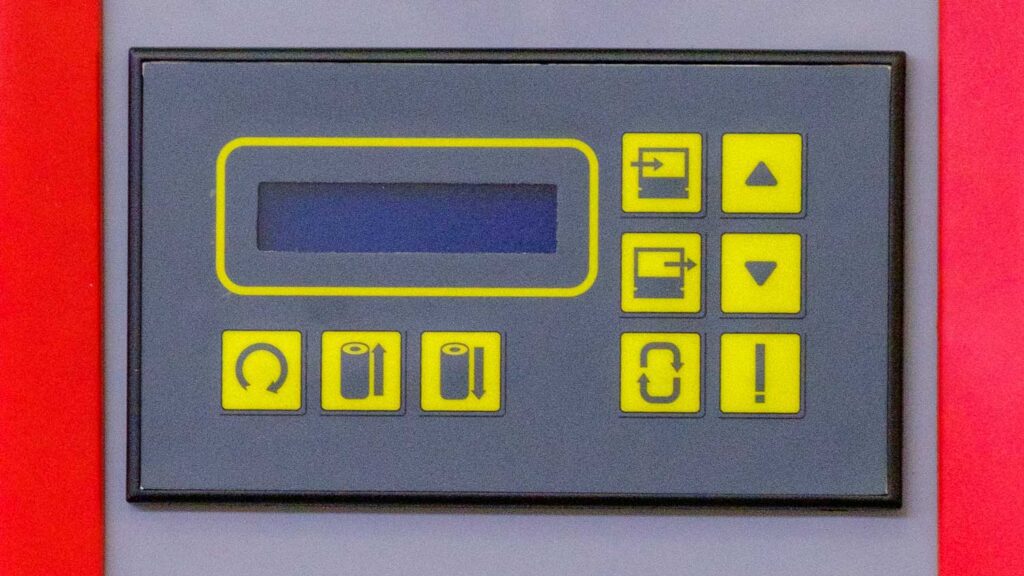

Electronic control panel with 10 password protected wrapping cycles

Arm rotation regulated by variable frequency drive from 4 to 15 rpm

0
Wrapping height on request
0
Standard wrapping height
0
Up to 3 years warranty

Pallet dimensions up to 2800×200 mm

Arm stop position controlled by sensor

OPTIONALS

Automatic film cut at the end of the cycle

Photocell for black or reflective products

Motorised or pneumatic top press

WATCH THE PICTURES

packaging made in italy

DESIGNED AND PRODUCED BY EFFE3TI

Semi-automatic wrapping machine with rotating arm, with motorized pre-stretch for the best use of the stretch film on the product.

Rotary arm wrapping machines offer higher productivity (pallets / hour) than rotary table wrapping machines.



SPECIFICATIONS

  • Wrapping of large palletised loads with unlimited load capacity.
  • Standard machine pallet height h=2100mm detected by photocell; special heights up to 3000 mm on request
  • The rotation speed of the arm is regulated by inverter (rotation adjustable from 4 to 15 rpm)
  • Arm stop position controlled by sensor
  • Customizable reel carriage speed regulated by inverter
  • Reel trolley anti-fall system
