With automatic film CUT AND WELD


Automatic film sealing and release clamp
Reduction of the film band for greater anchoring to the pallet
MOTORISED PRE-STRETCH system
It allows you to wrap light and unstable products that would not be rolled up with traditional systems. The stretch film is dispensed in the right quantity by rollers driven by a motor controlled by an electronic system that measures the speed and keeps the film tension constant over the entire wrapped product.
The motorized pre-stretch system ensures a variable elongation up to 400% in the 2-motor version.

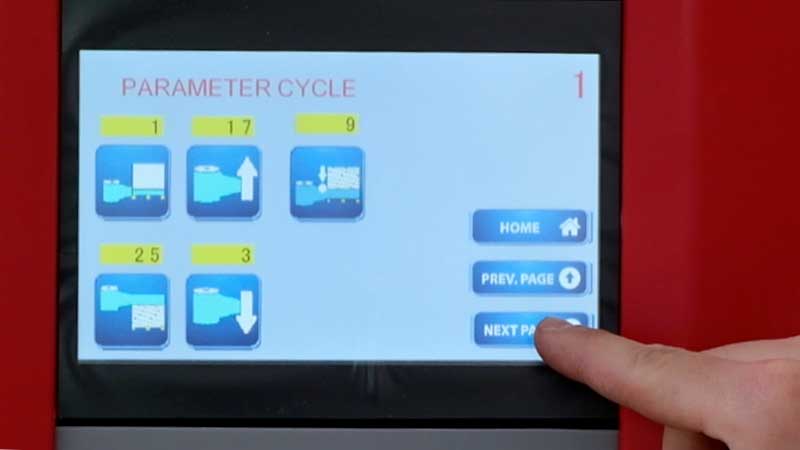

TOUCH-SCREEN control panel
Up to 10 customisable wrapping cycles
Product height detected by photocell
ON REQUEST
Motorised or pneumatic top press
Cycle start with radio control
Rotating table 1800 mm
GET CONNECTED!
Spinny S500 in the Datalogger version is the Industry 4.0 certified wrapping machine!


WATCH THE VIDEOS
WATCH THE PICTURES


DESIGNED AND PRODUCED BY EFFE3TI
Semiautomatic wrapping machine with rotating turntable.
Pallet wrapper equipped with a film cutting and sealing system at the end of the cycle. Motorized pre-stretch for maximum savings in consumables, available in versions with 1 or 2 motors, with savings of up to 400%.
SPECIFICATIONS
- Standard pre-stretch up to 300%; on request with two motors up to 400%
- Distance between column and rotary table 500 mm
- Wrapping height up to 2600 mm detected by photocell
- Separate programming of high and low reinforcement wraps
- Table rotation regulated by inverter from 5 to 15 rpm
- Table stop position controlled by sensor
- Variable speed of movement of the carriage customizable
- Film carrier fall prevention system
- Work cycles controlled by PLC and electronic board
- Reduction of the film band for greater anchoring to the pallet
- Automatic system of stapling – cutting – sealing of the final edge of the film
